Structural Insulated Panels (SIPs) subject to short-term out-of-plane loads

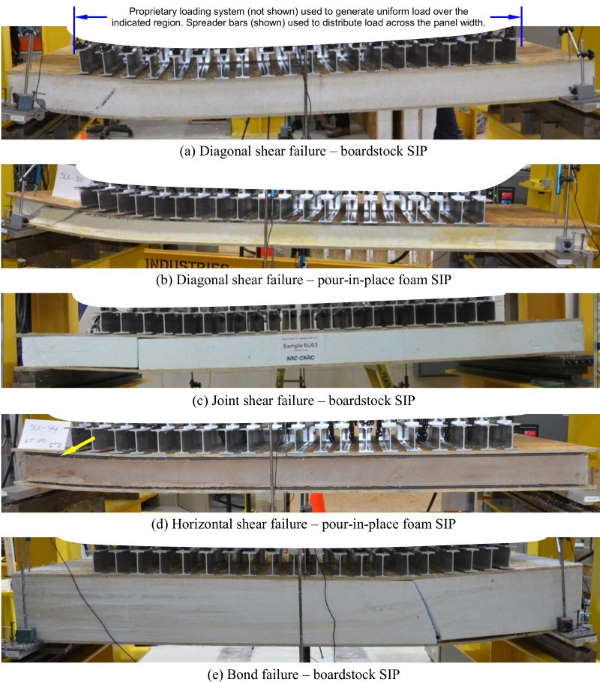

Structural insulated panels (SIPs) are a panelized building system composed of external oriented strandboard wood sheets bonded to a lightweight boardstock or pour-in-place foam core. This project investigated the structural behavior of OSB-faced SIPs subject to short-term out-of-plane transverse loading. A total of 35 panels with varying types of foam core, thickness and other construction details were subjected to partially distributed uniform loading. The results showed that the ultimate shear resistance of SIPs is proportional to the mechanical properties of the core, and inversely proportional to the thickness of the core. The observed relationship between core shear stress at failure and core thickness was used to calibrate a reliability-based design expression to predict the shear strength of full-size panels based on properties obtained from small-scale foam material tests. Sandwich panel theory can accurately predict the initial stiffness of SIPs when behavior remains in the linear range. Finally, recommendations regarding panel design and construction were made to improve the shear behavior of SIPs.
